The Immulator™

Single-Phase Immersion-Cooling Server Emulators

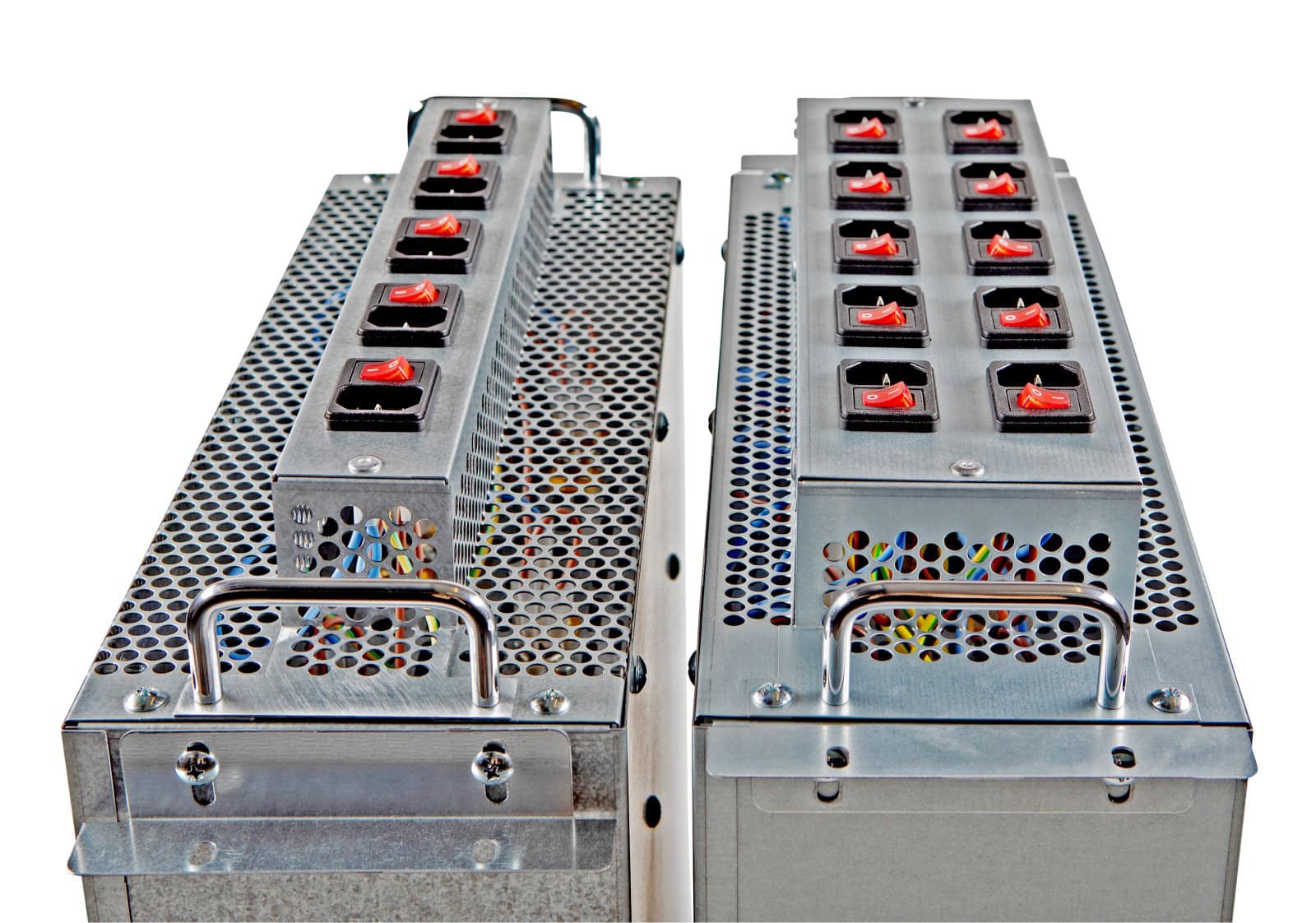

The Immulator™

The Immulator™ is a first-of-its-kind single-phase immersion-cooling server emulator. Developed by HeatLoad, it is the most advanced immersion-cooled emulator technology available commercially.

By submerging the Immulator ™ into the nonconductive dielectric liquid, we are able to commission immersion-cooled technology. The physical properties of the heating element within the Immulator ™ are similar to the natural flow of liquid through the servers, thus providing a true environmental test within immersion technology.

Specifications
ILB 10kW (Immersive Load Bank 10kW)
Maximum Capacity 10 kW
Voltage Ranges (Continuous Operation)210-230 VAC
Phases1 PH
Frequency
50Hz
WiresX5 C13 Power Inlet – (L, N + E)
Load- Step Resolution/ Number of steps2kW, 2kW, 2kW, 2kW, 2kW
Voltage tolerance Nominal + /-5%
Voltage Tolerance (Short Term Operation)Nominal + / -5%
Load Element ToleranceNominal + / -10%
ElementsNickle /Chrome Alloy Resistive Wire
Insulation GradeConform to BS 6231 Type CK
ControlC13 Power Inlet
Protection Over temperature protection thermostat (70°C +/-3°C)
Load ConnectionsC13 Connector
Cooling MethodNatural Convection (Dielectric Fluid)
Exhaust Air Temperature (Approx.)TBC
Air-Flow (Approx.)NA
Load Switching TypeResistive
Load Switching Contractor TypeNA – Circuit Protection Remote
Rated Maximum Ambient Temperature OperationNominal +85°C
Rated Minimum Ambient Temperature OperationNominal -10°C
Rated Maximum Ambient Humidity95% RH – Non-Condensing
Altitude RatingLess than 2500 m Above Sea Level
EnclosureZinc-coated steel
Minimum Inlet Clearance0mm – Coolant must circulate
Minimum Outlet Clearance0mm – Coolant must circulate
IP Rating IP20
Lifting & Movement1 Person Lift
Physical DimensionsValueUnit
Length436mm
Width153mm
Height754mm
Total Weight11.5 (Nominal)KG
